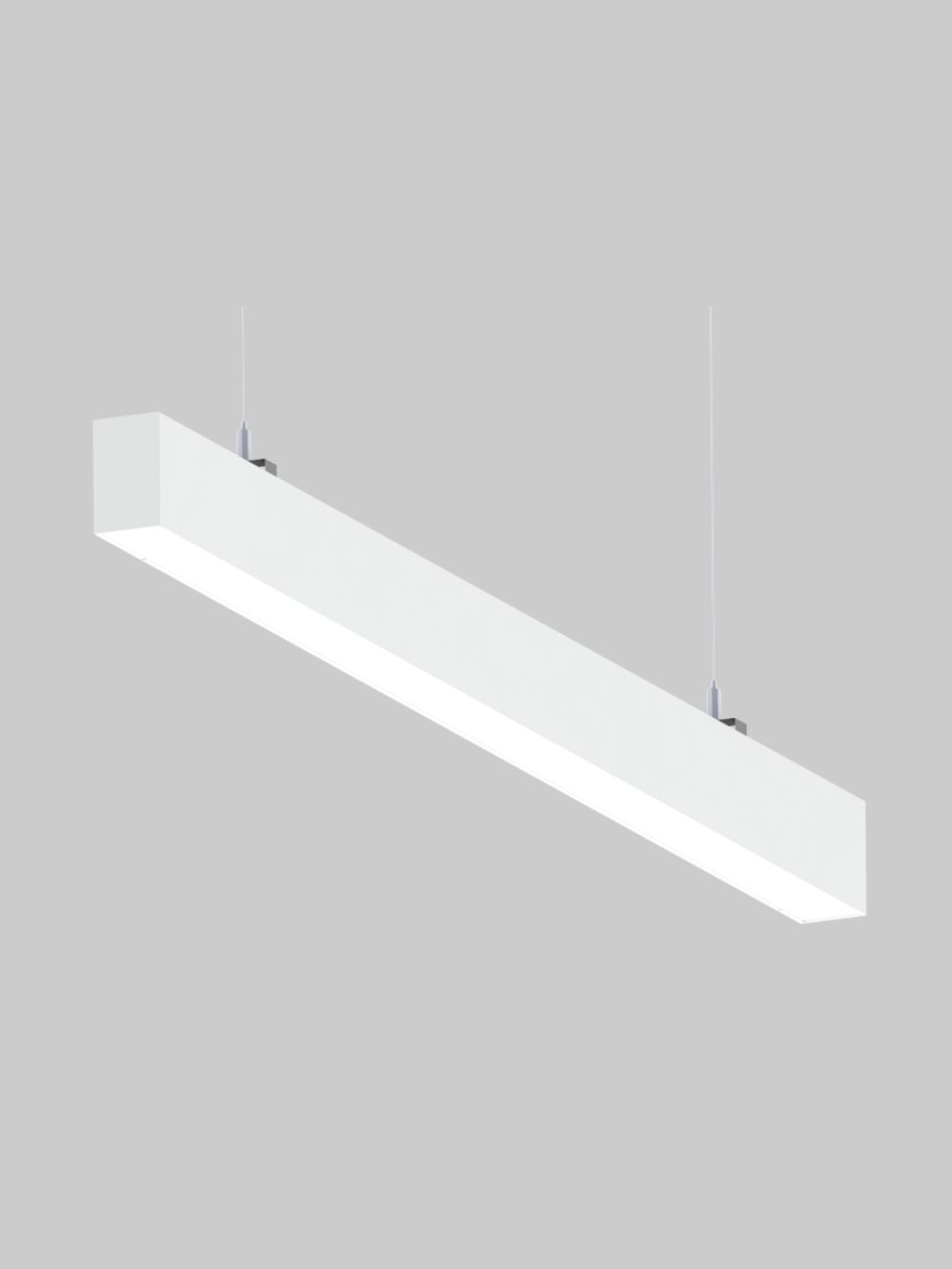

Axis (Down Only)
Axis (Down Only)
Features
- Diffuser fixing : Imported HET opal diffuser with high transmission ratio
- 1.5 meter Suspension suitable for True Ceiling and Gypsum ceiling adjustable along the length and height
- Driver options available are constant current flicker free , also available in analog and DALI
- Top Side serviceability for Driver, End cap side serviceability for PCB.
- Seamless continuous joining accessories
- UGR <19 : UGR Prismatic Diffuser Option
- Tunable white CCT option 2700K-6500K
- 70% Direct + 30% Indirect Combination Option
- 90 CRI Optional
- Fixed angle joints: 90 L, 60 V, 120 V, 120 Y, 90 T & 90 +
View Technical Specs
| Technical Parameters | Values |
|---|---|
| Lumen Efficacy | 110 Lm/W |
| Illumination | 100 % Down |
| Operating Ambient Temperature | 0-45 °C |
| Operating Frequency | 50 Hz ± 3% |
| Rated Voltage | 240 V |
| Input Voltage Range | 150 V – 270 V |
| IP rating | IP20 |
| Construction Details | Housing – Extruded Al End Cap – PDC Die Cast |
| Diffuser/Optical material | Opal Diffuser Prismatic Diffuser |
| Colour Temperature (K) CCT | 3000K, 4000K, 5700K, 6500K |
| Standard Deviation Colour Matching (SDCM) | 3 SDCM |
| LED life with L70 criteria | 50,000 Hrs |
| Color Rendering Index | CRI > 80 or 90 |
| Unified Glare Rating | UGR < 25 |
| Beam Angle | > 90° |
| Driver Efficiency | >85% |
| Surge Protection (kV) | 3 kV |
| PF @ Full Load & Rated Voltage | >0.95 |
| THD @ Full Load & Rated Voltage | < 5 % |
| LED CCT Binning | ANSI Bin C78.377A |
| LED Photo biological safety report | IEC 62471 |
| Electrical Insulation Class | Class I |
Variants
| Product Length | Wattage | CCT & CRI | System Lumen | Color | Order Code |
|---|---|---|---|---|---|
| 605 X 52 X 85 | 10W | 4000K & 80CRI | 1100 Lm | White | LI21-PC20-1040-WHPZ |
| 605 X 52 X 85 | 15W | 4000K & 80CRI | 1650 Lm | White | LI21-PC20-1540-WHPZ |
| 905 X 52 X 85 | 15W | 4000K & 80CRI | 1650 Lm | White | LI21-PC30-1540-WHPZ |
| 905 X 52 X 85 | 20W | 4000K & 80CRI | 2200 Lm | White | LI21-PC30-2040-WHPZ |
| 1205 X 52 X 85 | 20W | 4000K & 80CRI | 2200 Lm | White | LI21-PC40-2040-WHPZ |
| 1205 X 52 X 85 | 30W | 4000K & 80CRI | 3300 Lm | White | LI21-PC40-3040-WHPZ |
| 1505 X 52 X 85 | 25W | 4000K & 80CRI | 2750 Lm | White | LI21-PC50-2540-WHPZ |
| 1505 X 52 X 85 | 36W | 4000K & 80CRI | 3960 Lm | White | LI21-PC50-3640-WHPZ |
| 1805 X 52 X 85 | 30W | 4000K & 80CRI | 3300 Lm | White | LI21-PC60-3040-WHPZ |
| 1805 X 52 X 85 | 45W | 4000K & 80CRI | 4950 Lm | White | LI21-PC60-4540-WHPZ |
| 2405 X 52 X 85 | 40W | 4000K & 80CRI | 4400 Lm | White | LI21-PC80-4040-WHPZ |
| 2405 X 52 X 85 | 60W | 4000K & 80CRI | 6600 Lm | White | LI21-PC80-6040-WHPZ |
For Specifiers
Clove Make – AXIS Suspended linear light, 52X85 mm, 4ft Length, 20W, 80CRI, 4000K CCT, HET Opal Diffuser, white powder coated. Total Lumen 2200 lux, 3 SDCM LED binning, ON-OFF switchable Inbuilt driver with constant current type, THD<5%, Efficiency>85%, PF>0.95, serviceability from top side. Aluminum extruded housing, rigid PCB with SMD connectors, non visible screw end caps and with all accessories for installation.
