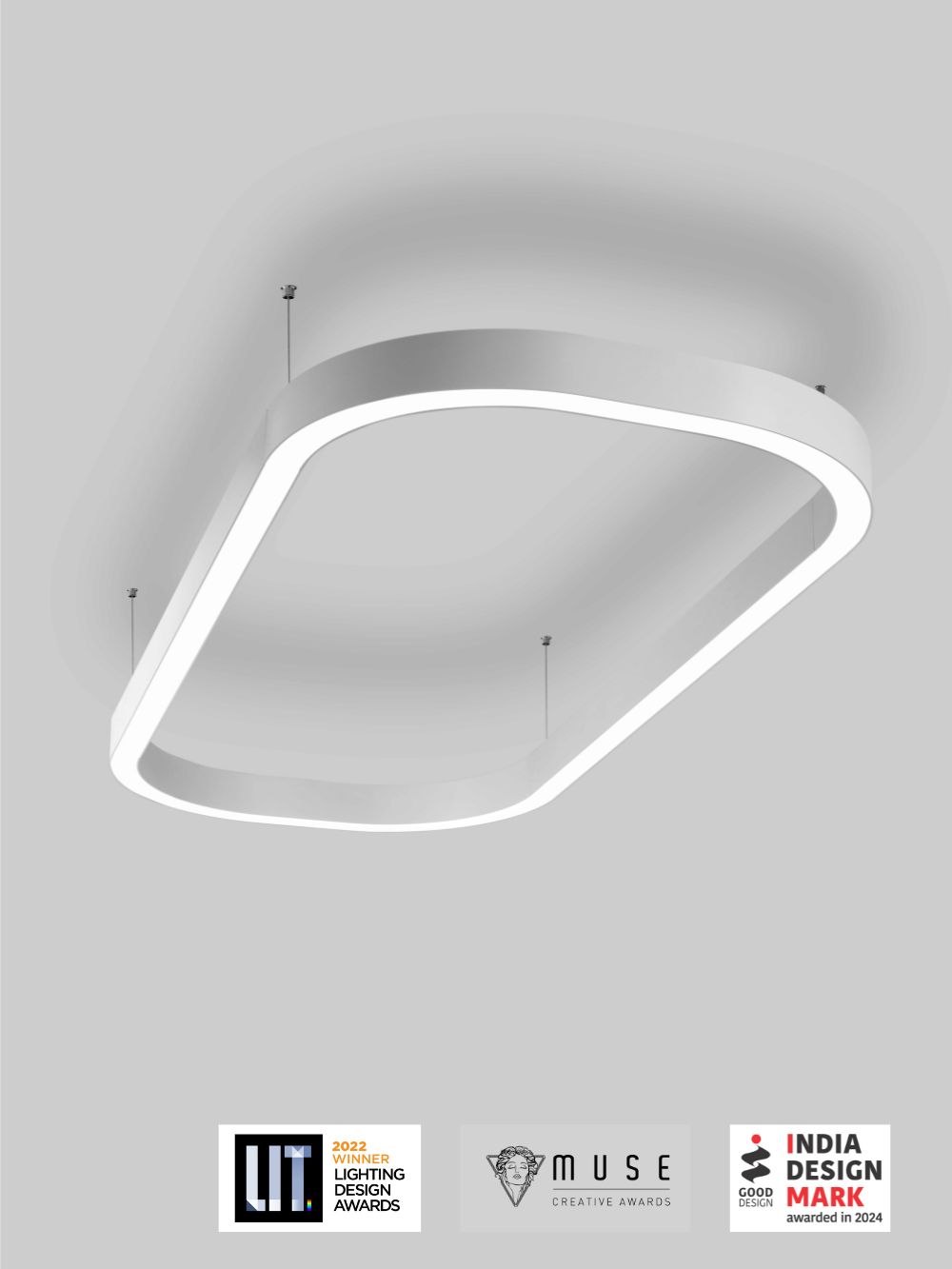

Axis Smooth Curvi-Linear
Axis Smooth Curvi-Linear
Features
- Aluminum housing body with CNC controlled bending
- Rigid PCB with 35 micron copper
- PCB with SMD connectors for connections
- Aesthetically superior powder coating finishes
- UGR option available
- Light leakage less continuous installation
- Top serviceable driver part side serviceable for PCB
Variants
| Product Size | Wattage | CCT & CRI | System Lumen | Color | Order Code |
|---|---|---|---|---|---|
| W50 X H77 | 20W/mtr | 4000K & 80 | 2000 Lm/mtr | White | CL12-PC10-2040-WHPZ |
| W50 X H77 | 30W/mtr | 4000K & 80 | 3000 Lm/mtr | White | CL12-PC10-3040-WHPZ |
View Technical Specs
| Technical Parameters | Values |
|---|---|
| Lumen Efficacy | 100 Lm/W +/- 5% |
| Illumination | 100 % Down |
| Operating Ambient Temperature | 0-45 °C |
| Operating Frequency | 50 Hz ± 3% |
| Rated Voltage | 240 V |
| Input Voltage Range | 150 V – 270 V |
| IP rating | IP20 |
| Construction Details | Housing – CNC Bent Extruded Al |
| Diffuser/Optical material | HET Diffuser |
| Light Source | LED |
| LED Manufacturer | Bridgelux |
| Colour Temperature (K) CCT | 3000K, 4000K, 5700K, 6500K |
| Standard Deviation Colour Matching (SDCM) | 3 SDCM |
| LED life with L70 criteria | 50,000 Hrs. |
| Color Rendering Index | CRI > 80 |
| Unified Glare Rating | UGR < 26 |
| Beam Angle | > 90° |
| Driver Efficiency | >85% |
| Surge Protection (kV) | 3 KV |
| PF @ Full Load & Rated Voltage | >0.95 |
| THD @ Full Load & Rated Voltage | < 5 % |
| LED CCT Binning | ANSI Bin C78.377A |
| LED Photo biological safety report | IEC 62471 |
| Electrical Insulation Class | Class I |
For Specifiers
Clove Make – Axis Smooth Curvi-Linear Light, 30W/mtr with Inbuilt driver, 80 CRI, 3 SDCM LED, THD < 5 % and Efficiency >85%, PF < 0.95, Total lumen flux - 3000 Lm/mtr, white powder coated aluminum housing and non visible screw end caps
