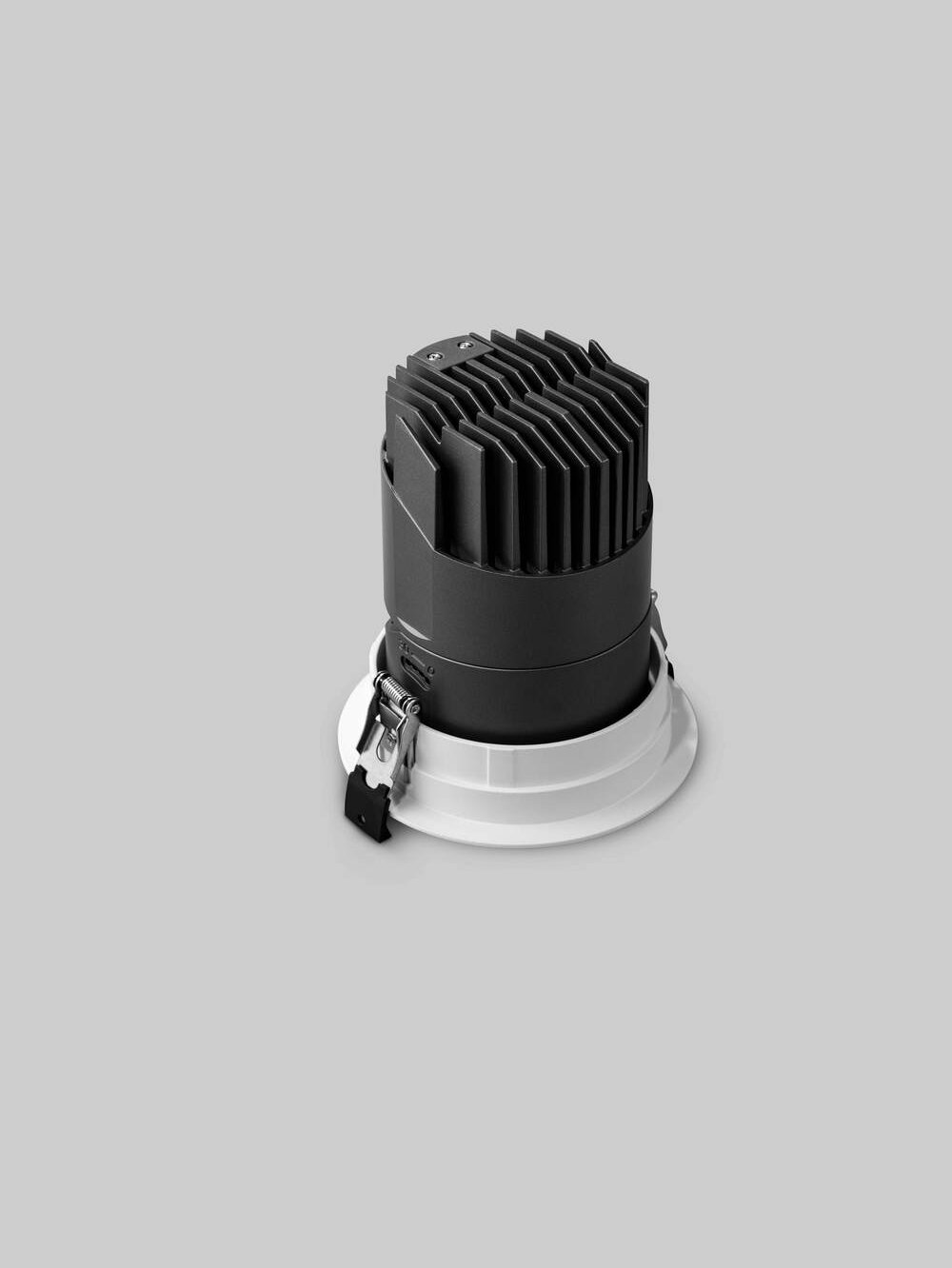

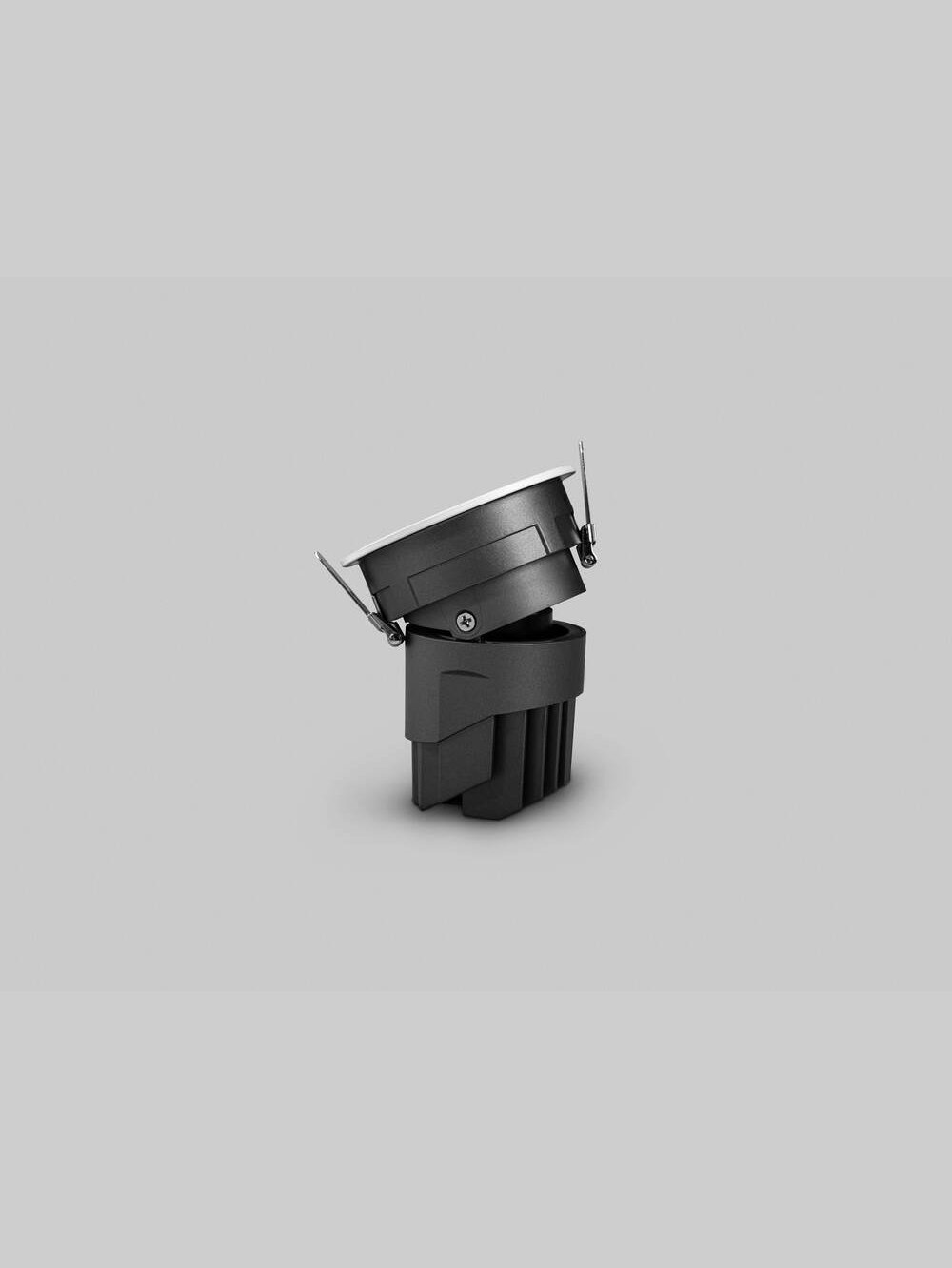

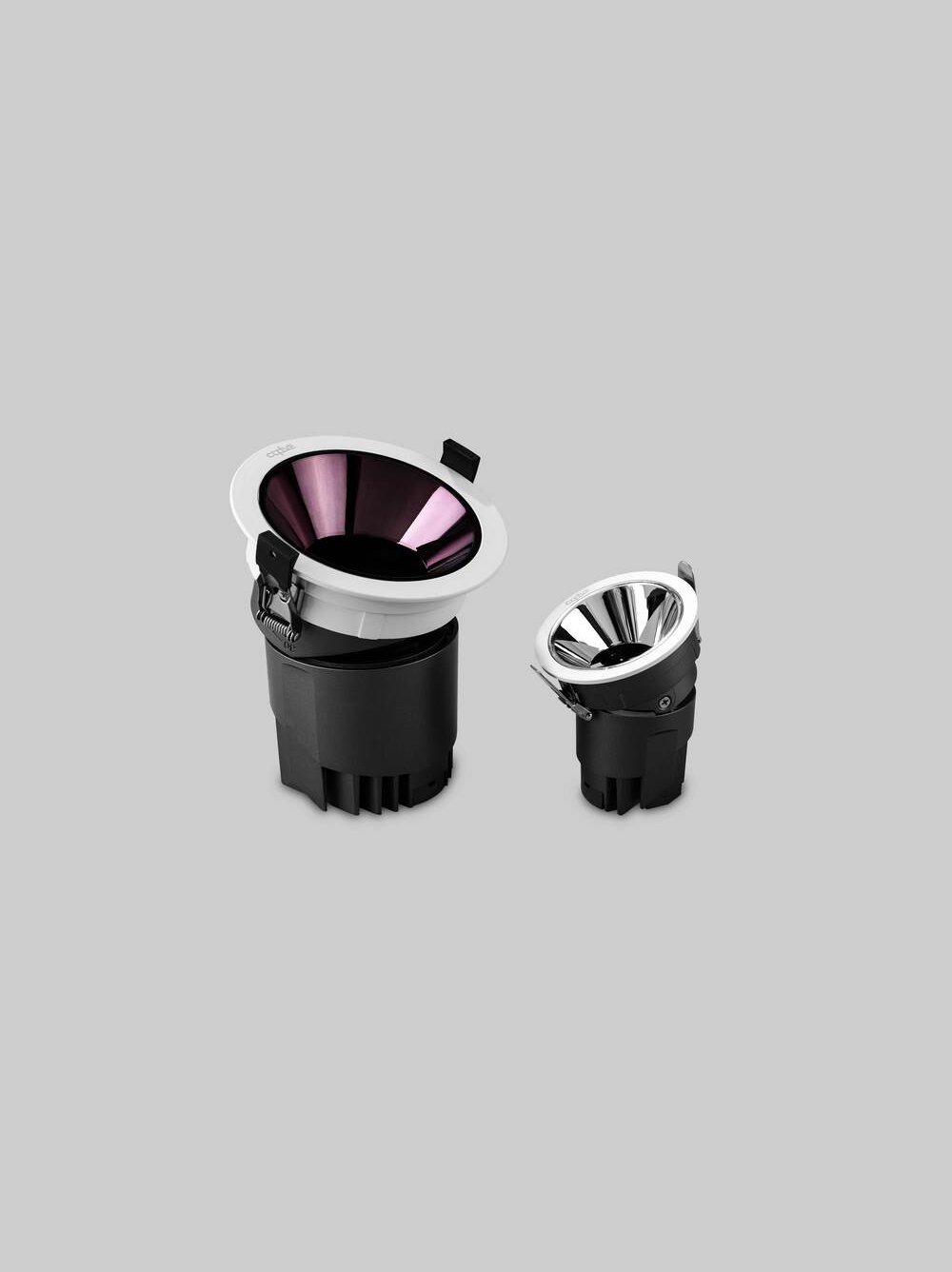

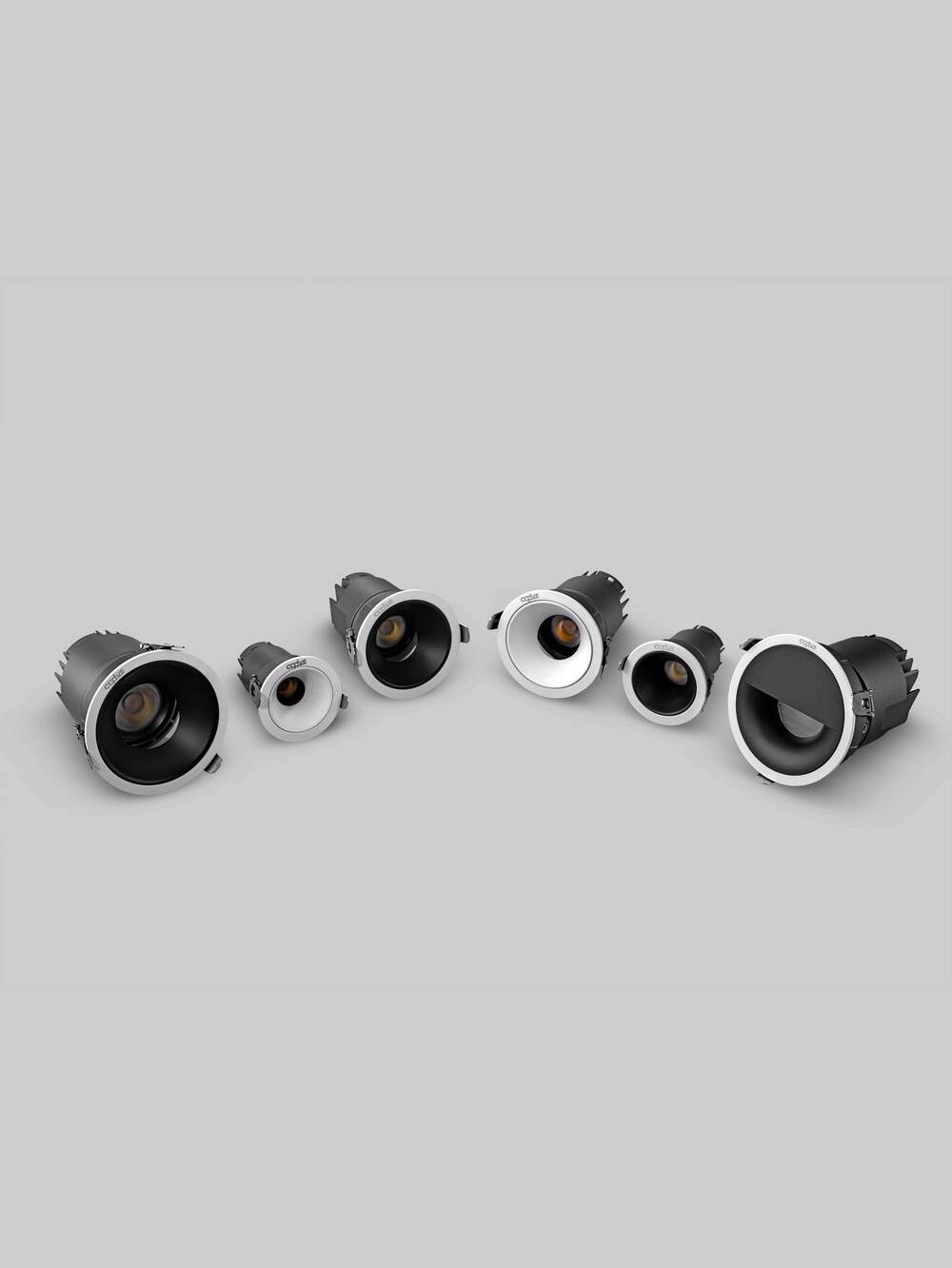

G Series
G Series
Features
- Thermally proven die casted heat sink to maintain COB temperature within limit
- Deep source
- No visible screws design
- Detachable driver for easy servicing and replacement of driver
- Aluminum powder coating finishes
- DALI/Analog Dimming compatibility
- 90CRI option
Variants
| Order Code | Product Size (Dia. X H) | Ceiling Cutout | Wattage | System Lumen | CCT & CRI | Beam Angle | Color |
|---|---|---|---|---|---|---|---|
| SLG1-RC1B-0640-WHW9 | Ø65 X 78mm (black Trim) | 55 mm | 6W | 540 Lm | 4000K & 90CRI | 55° | White coated |
| SLG1-RC1B-0940-WHW9 | Ø65 X 78mm (black Trim) | 55 mm | 9W | 810 Lm | 4000K & 90CRI | 55° | White coated |
| SLG1-RC2B-1240-WHW9 | Ø85 X 101mm (black Trim) | 75 mm | 12W | 1050 Lm | 4000K & 90CRI | 55° | White coated |
| SLG1-RC2B-1540-WHW9 | Ø85 X 101mm (black Trim) | 75 mm | 15W | 1350 Lm | 4000K & 90CRI | 55° | White coated |
| SLG1-RC3B-1840-WHW9 | Ø105 X 110mm (black Trim) | 95 mm | 18W | 1600 Lm | 4000K & 90CRI | 55° | White coated |
| SLG1-RC4B-2540-WHW9 | Ø105 X 121mm (black Trim) | 95 mm | 25W | 1800 Lm | 4000K & 90CRI | 55° | White coated |
| SLG1-RC5B-3040-WHW9 | Ø135 X 142mm (black Trim) | 120 mm | 30W | 2100 Lm | 4000K & 90CRI | 55° | White coated |
| SLG1-RC5B-4040-WHW9 | Ø135 X 142mm (black Trim) | 120 mm | 40W | 2500 Lm | 4000K & 90CRI | 55° | White coated |
| SLG1-RC2B-1540-WHWW | Ø65 X 78mm (Wallwasher Trim) | 55 mm | 15W | 750 Lm | 4000K & 90CRI | WW | White |
| SLG1-RC2B-1540-WHPH | Ø65 X 78mm (Pinhole Trim) | 55 mm | 15W | 750 Lm | 4000K & 90CRI | 15° | White |
| SLG1-RC2B-1540-WHBLL | Ø65 X 78mm (Linear filter with black Trim) | 55 mm | 15W | 750 Lm | 4000K & 90CRI | 15° | White |
View Technical Specs
| Technical Parameters | Values |
|---|---|
| Lumen Efficacy | 90 Lm/W +/- 5% |
| Illumination | 100 % Down |
| Operating Ambient Temperature | 0-45 °C |
| Operating Frequency | 50 Hz ± 3% |
| Rated Voltage | 240 V |
| Input Voltage Range | 150 V – 270 V |
| IP rating | IP20 |
| Construction Details | Die Casted Heat sink and Ring SS Spring Clamp |
| Diffuser/Optical material | Highly efficient Reflector with color trims for extra glare cut |
| Light Source | LED |
| LED Manufacturer | Bridgelux |
| Colour Temperature (K) CCT | 3000K, 4000K, 5700K, 6500K |
| Standard Deviation Colour Matching (SDCM) | 3 SDCM |
| LED life with L70 criteria | 50,000 Hrs. |
| Color Rendering Index | CRI > 90 |
| Unified Glare Rating | UGR < 16 |
| Driver Efficiency | >85% |
| Surge Protection (kV) | 3 kV |
| PF @ Full Load & Rated Voltage | >0.95 |
| THD @ Full Load & Rated Voltage | < 5 % |
| LED CCT Binning | ANSI Bin C78.377A |
| LED Photo biological safety report | IEC 62471 |
| Electrical Insulation Class | Class I |
For Specifiers
Clove Make – FINO-G series spotlight, Ø85XH101mm, 15W, 90CRI, 4000K CCT, 55°, matt black trim, White rim. Aluminum die cast heatsink powder coated through deep cleaning, IP20 construction, 30° adjustable focus, COB efficasy 120Lm/W, System Lumen efficasy 90 Lm/W, 3 SDCM LED binning, ON-OFF switchable driver with constant current type, THD<5%, Efficiency>85%, PF>0.95.
Ceiling Cutout – Ø75mm
