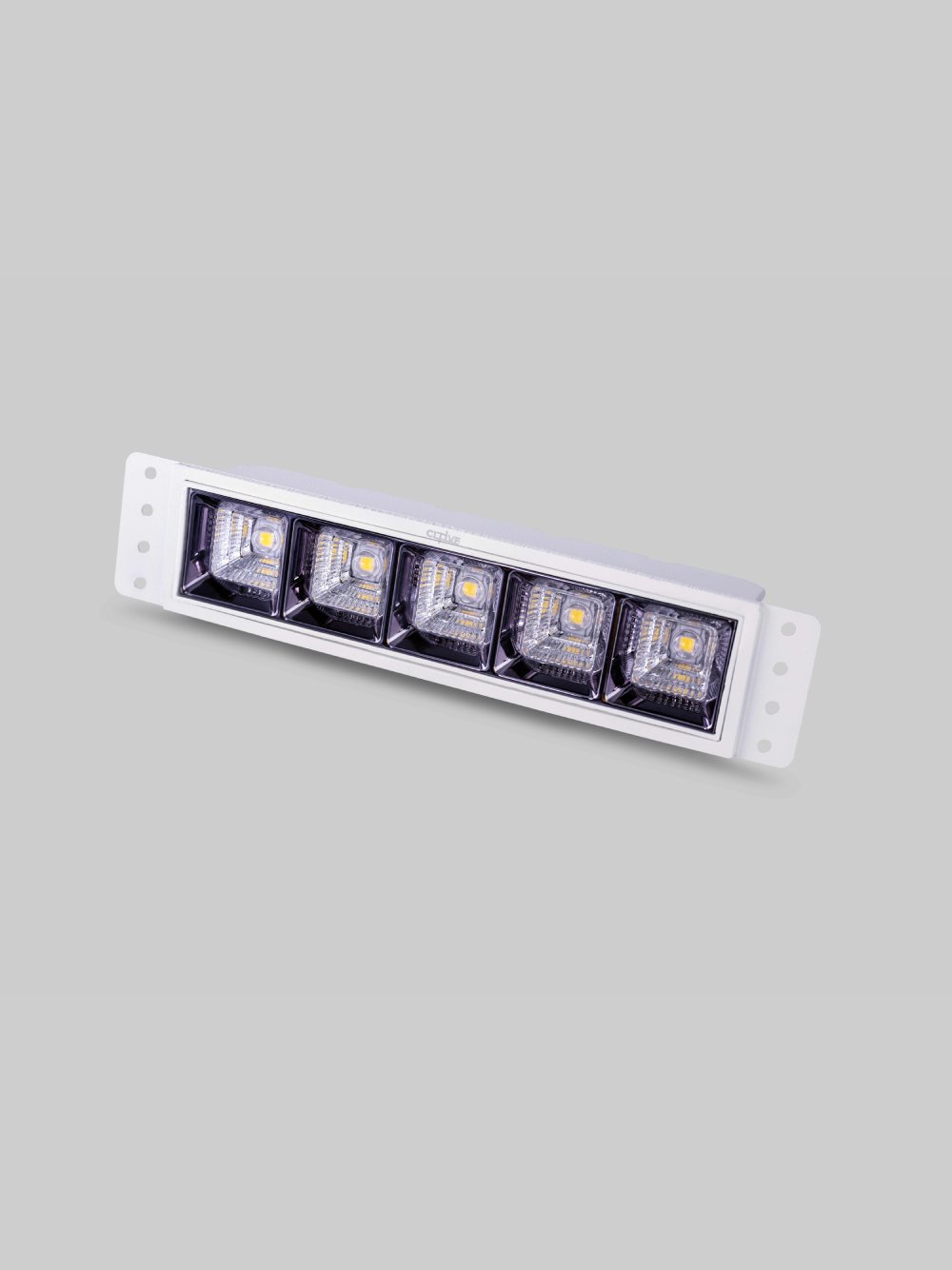

SQUAD 5X1 Trimless

SQUAD 5X1 Trimless
Squad 5X1
Squad 5X1
SQUAD 5X1 Trimless
Squad 5X1
Squad 5X1

SQUAD 5X1 Trimless

Features

  • Linear shape of its is useful in aligning with Linear fixtures rather than Round Down lighter
  • Perfectly match with linear workstations
  • UGR below 19
  • PDC Heat Sink cum Housing is suitable for up to 22 W of thermal capacity
  • Glare cutting optical lens used giving reduced glare
  • Suitable for Baffles, Suspended Ceilings, False Ceilings, True Ceilings
  • Easy Serviceability of LENS module, snap fit locking mechanism
squad-5x1 trimless

Color Option

  • Black
  • White

Downloads

Specification Sheet

Variants

Order CodeProduct Size (Dia. X H)Ceiling CutoutWattageSystem Lumen CCT & CRIColor
DL06-TC01-1840-WH7Z242 X 52 X 56 mm200 X 45 mm 18W 2000 Lm 4000K & 80CRIWhite
DL06-TC01-2040-WH7Z242 X 52 X 56 mm 200 X 45 mm 20W 2200 Lm4000K & 80CRIWhite
DL06-TC01-2540-WH7Z242 X 52 X 56 mm200 X 45 mm25W2600 Lm4000K & 80CRIWhite

View Technical Specs

Technical ParametersValues
Lumen Efficacy 100 Lm/W +/- 5%
Illumination100 % Down
Operating Ambient Temperature0-45 °C
Operating Frequency 50 Hz ± 3%
Rated Voltage240 V
Input Voltage Range150 V – 270 V
IP ratingIP20
Construction DetailsAluminum Die Cast Heatsink & Brackets for Trimless mounting
Diffuser/Optical materialHighly efficient Reflector with precise beam angle control
Light SourceLED
LED ManufacturerBridgelux
Colour Temperature (K) CCT3000K, 4000K, 5700K, 6500K
Standard Deviation Colour Matching (SDCM)3 SDCM
LED life with L70 criteria50,000 Hrs.
Color Rendering IndexCRI > 80
Unified Glare Rating UGR < 19
Driver Efficiency >85%
Surge Protection (kV)3 kV
PF @ Full Load & Rated Voltage >0.95
THD @ Full Load & Rated Voltage< 5 %
LED CCT BinningANSI Bin C78.377A
LED Photo biological safety reportIEC 62471
Electrical Insulation ClassClass I

For Specifiers

Clove Make – SQUAD 5X1 trimless light, L242XW52XH56mm, 18W, 80CRI, 4000K CCT, 70X70° beam angle, white powder coated, gunmetal color trim. Total Lumen 1800 lux, 3 SDCM LED binning, ON-OFF switchable driver with constant current type, THD<5%,Efficiency>85%, PF>0.95. Aluminum die cast housing, and with all accessories for installation.
Ceiling Cutout – 200X45mm
